Remote Heads

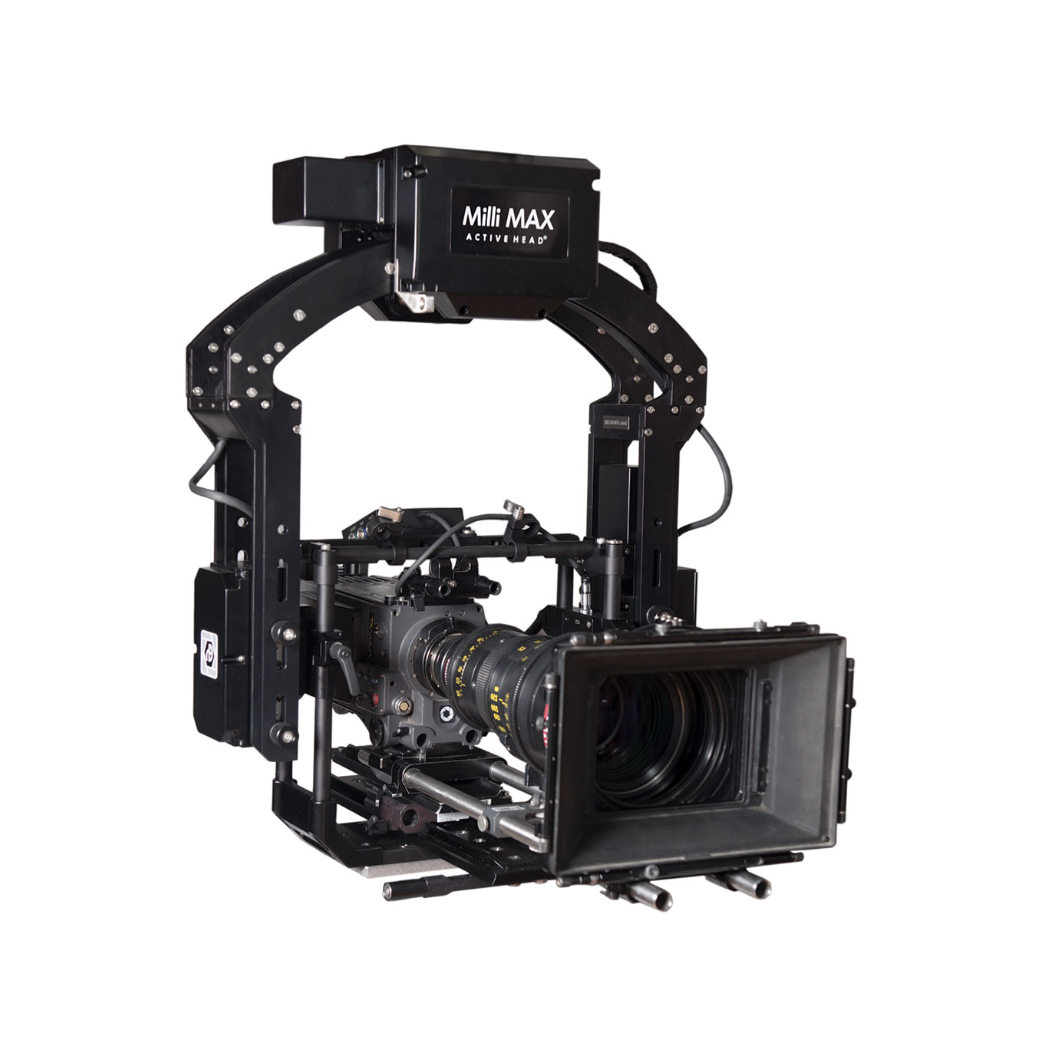

Active Head Milli Max
The design of this Head allows to use variety of film and digital cameras (up to IMAX cameras). Extra wide TILT frame provides greater space for additional camera equipment. Easy balancing technology allows to save rigging time.
Specs:
Height: 721mm (28.38 in)
Width: 576mm (22.67 in)
Depth: 245mm (9.65 in)
Power supply AC: 90-264V); 500W (peak)
Power supply DC: (19-72V); 500W(peak)
Pan angular speed (max): 270 deg/sec
Tilt angular speed (max): 270 deg/sec
Roll angular speed (max): 100 deg/sec
Roll Range: 72 deg
Weight: 25 kg/ 55 lb
Maximum usable focal length: 250 mm (9.85 in)
Payload: 30 kg/ 55 Ib
Arri SRH 360
The major improvement with the SRH‑360 is to the pan axis functionality: A new slip ring permits unlimited rotation of the head. At the same time, the torque of the pan motor has been increased by 50%, allowing it to compensate for powerful centrifugal forces when shooting high-speed camera moves. This makes the SRH‑360 even more flexible for dynamic environments such as action, stunts, vehicle work, sports, and live music performances.
Specs
Head Weight - 25 LBS
Payload - 60 LBS
Controls - Wheels, Joystick
Tilt Range - + 60 degrees / - 110 degrees
Roll limit + / - 90 degrees
Pan Range - Unlimited
Freely Movi XL
3 Axis stabilized head capable of utilizing the “Matrix Mode” enabling 360 degree rolls.
Specs
Head Weight - 30 LBS
Payload - 55 LBS
Controls - Wheels, Joystick
Tilt Range - + 70 degrees / - 170 degrees
Roll limit + / - 90 degrees
Optional Matrix Mount for 360 Z roll
Pan Range - Unlimited
